Welcome To ATP

Applied Thin-Film Products (ATP) was founded in the heart of Silicon Valley specifically for the purpose of providing state-of-the-art thin-film circuit processing. ATP’s manufacturing facility and cleanrooms were designed and setup for thin-film circuit fabrication. ATP’s experienced personnel and representatives possess motivation and integrity which is reflected by the reputation we enjoy in the Wireless RF and Microwave field. ATP takes great pride in delivering superior processing and products with punctual delivery and competitive pricing.


Thin-Film Fabrication Technology

Complete In-House Thin-Film Circuit Fabrication Service

Pattern Generated Photomasks

In-House Resistor Laser Trimming and CO2 Laser Drilling

Multiple Sputtering Systems and Plating Capabilities

Air Bridges/Crossovers with Polyimide and Solder Dams

Wide Selection of Materials and Metallizations

Hollow Plated and Solid Filled Via Capabilities

AI203, AIN, BeO, Fused Silica/Quartz and Hi-K Dielectrics

Multiple Part Number Array (Pizza Array) Capability

Quick Turn Engineering Prototypes

Predeposited Gold/Tin (Au/Sn)

High-Rel Screening: Bond Pull, Die Shear, Temp Shock, Temp Cycle, Burn In per MIL-PRF-38534

AS9100 Certified and ISO 9001:2008 Certified

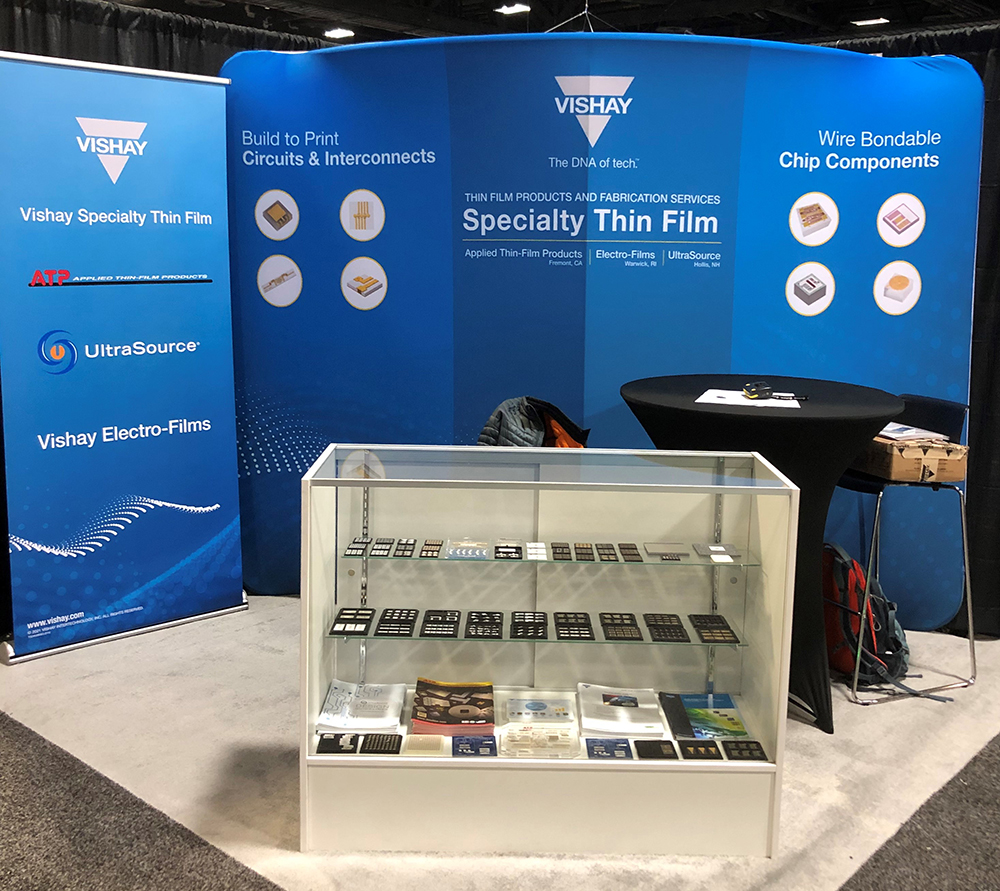

News and Events

International Microwave Symposium

IEEE-MTTS

June 4–6, 2013

Seattle, Washington, USA

ATP Booth #2221

http://www.ims2013.org

Applied Thin-Film Products (ATP) conforms to the requirements of the European Union’s Restriction on Use of Hazardous Substances in electrical and electronic equipment (RoHS) Directive, 2011/65/EU.

Applied Thin-Film Products (ATP) supports the Dodd-Frank Wall Street Reform and Consumer Protection Act and has worked with our supply chain to comply with Section 1502 of this legislation. More >

ATP has documented information on file from its current raw material supply chain concerning the origin of metals, minerals, and raw materials referenced in Section 1502. This documentation verifies that these raw materials do not originate from the Democratic republic of the Congo (the “Conflict Region”) or its adjoining countries.
